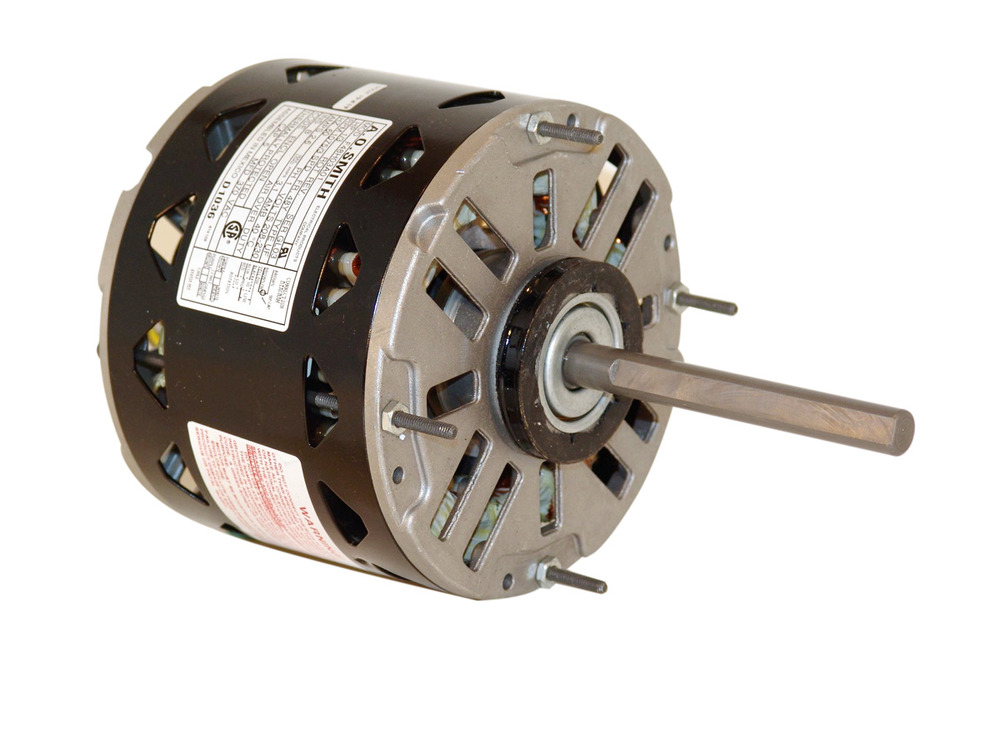

Century DL003 Fan and Blower Motor

Introducing the Century DL003 Fan and Blower Motor – Your Ultimate HVAC Solution!

Are you in need of a high-quality furnace, air handler, or blower motor? Look no further than the Century DL003! This electrical powerhouse boasts a Permanent Split Capacitor (PSC) design, making it a top choice for single-phase applications. With a voltage rating of 115, you can trust its reliable performance.

Technical Specifications:

• Electrical Type: Permanent Split Capacitor (PSC)
• Phase: Single
• Voltage: 115
• Overload Protector: Auto
• Frame: 48Y
• Enclosure: Open Air Over (OAO)
• Material: Durable Rolled Steel
• Horsepower: 1/3 HP
• Rotation: Reversible
• RPM (Revolutions per Minute): 1075
• Number of Speeds: 2

Key Features:

• Auto Protector: Ensures safety and longevity.
• Class “B” Insulation: Built to withstand the heat of continuous operation.
• Lead Reversible: Simplifies installation and configuration.
• Open Construction: Easy to access and maintain.
• Permanent Split Capacitor: Enhances efficiency and performance.
• Sleeve Bearing: Provides smooth and quiet operation.
• Standard Efficiency: Ideal for a wide range of applications.
• Additional Accessories: 2-1/4″ rings and 2-1/2″ adapters included.
• Ample Leads: 26″ leads for flexibility in installation.
• Frame: 48 Frame (5-5/8″ diameter)
• Frequency: 60 Hz

This motor’s robust 1/3 HP capability and reversible rotation make it suitable for a variety of tasks. With 2-speed options, you can tailor the airflow to your specific needs, ensuring optimum performance.

Upgrade your HVAC system with the Century DL003 5-5/8″ Diameter Furnace, Air Handler, and Blower Motor. Experience efficiency, reliability, and versatility like never before. Don’t miss out on this superior motor – order now!
