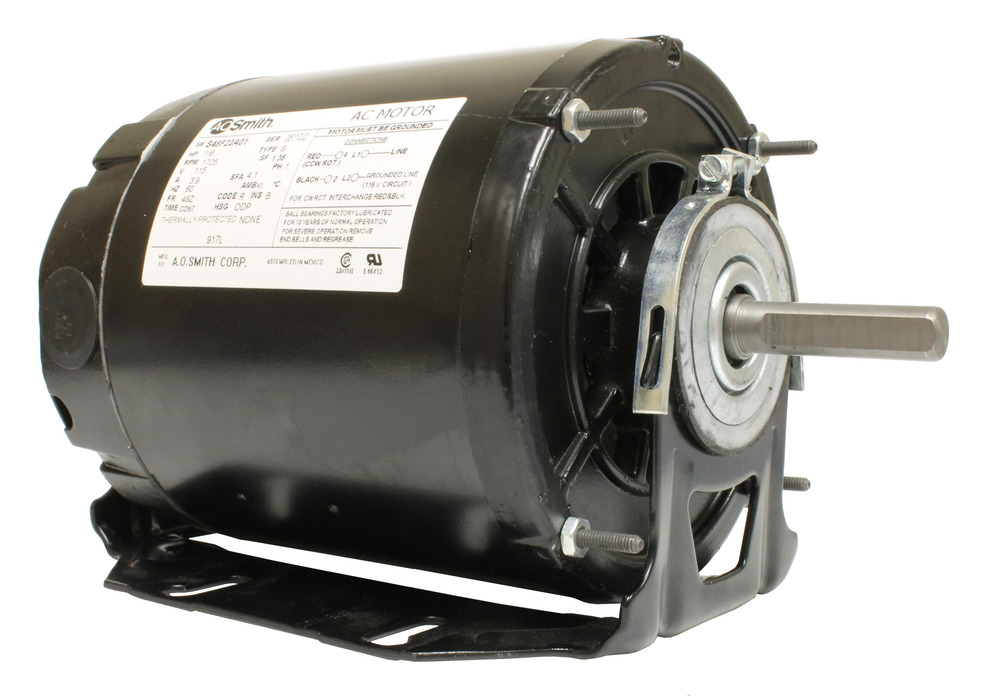

Century 917L Belt Drive Fan and Blower Motor
| Phase | Single Phase |
|---|---|
| Voltage | 115 |
| Frame | 48Z |
| Enclosure | ODP |
| Rotation | Reversible |
| Horsepower | 1/6 |
| Motor_Diameter | 5.6 |
| Product_Type | Belt Drive Fan and Blower Motor |
| Shaft_Type | Single |
| mpn | 917L |
| Product Type | Belt Drive Fan and Blower Motor |
| Diameter | 5.6 |
| Overload | No |
| Material | Rolled Steel |
Same day shipping if ordered before 3PM EST Monday-Friday (Local Pickup Available)
| Warehouse Locations | MI |
|---|
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
$306.02
In stock
Replacement motor specifications may differ from OEM. All replacement units are based on manufacture cross reference. Please give us a call if you have any questions you can also refer to our FAQ page located here (Frequently Asked Questions)
Local Pickup & Courier Delivery
(Refer to the Shipping & Delivery Section under the product description for more information)
Warehouse Locations: CA, CT, GA, MI, IL, TX, MD, MO, SC, IN, WA, PA
Phone: 517-543-4080
Century 917L Belt Drive Fan and Blower Motor
The Century 917L Belt Drive Fan and Blower Motor is a robust electrical split phase motor designed for various applications, including centrifugal pumps, blowers, and fans. This motor features a durable rolled steel enclosure and is engineered for energy efficiency and continuous operation.
Specifications:
- Electrical Type: Split phase
- Phase: Single
- Voltage: 115V
- Frame Size: 48Z
- Enclosure: Open Drip Proof (ODP)
- Material: Rolled steel
- Horsepower: 1/6 HP
- Rotation: Reversible
- RPM: 1725
- Number of Speeds: 1
- Load Amps: 4.6
- Service Factor: 1.00
- Ball Bearings: Yes
- Design: Totally Enclosed Non-Ventilated (TENV)
- Warranty: 1-year manufacturer warranty
This motor is equipped with class B insulation and operates at 60 Hz. It is designed for versatile mounting options, allowing the shaft to be positioned either vertically or horizontally. The Century 917L is ideal for blowing air inside buildings, ensuring efficient airflow in various environments.
Note: The motor does not include thermal protection.
| Weight | 13 lbs |
|---|---|
| Phase | Single Phase |
| Voltage | 115 |
| Enclosure | ODP |
| Class | |
| Frame | 48Z |
| Enclosure | ODP |
| Warehouse Locations | MI |
| Rotation | Reversible |
| Horsepower | 1/6 |
| Motor_Diameter | 5.6 |
| Product_Type | Belt Drive Fan and Blower Motor |
| Shaft_Type | Single |
| mpn | 917L |
| Product Type | Belt Drive Fan and Blower Motor |
| Diameter | 5.6 |
| Speeds | 1 |
| Overload | No |
| Material | Rolled Steel |
