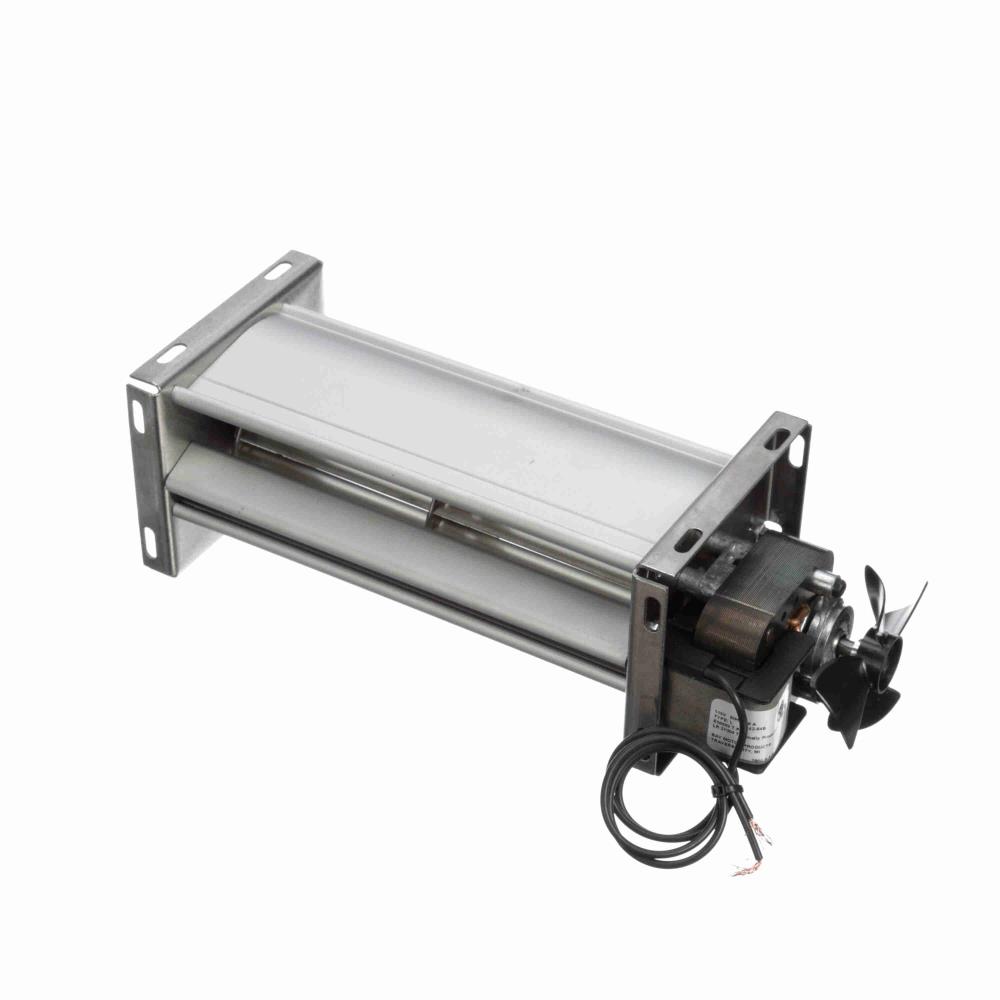

Century J507 Transflow / Crossflow Blower Assembly

Century J507 Transflow / Crossflow Blower Assembly

The Century J507 Crossflow/Tangential Blower is a versatile and efficient blower assembly designed for a wide range of applications. Below are its key specifications and features:

Key Specifications:

• Model: J507 Crossflow/Tangential Blower
• Electrical Type: Shaded Pole
• Phase: Single
• Voltage: 120V
• Overload Protector: Impedance
• Enclosure: Open Air Over (OAO)
• Material: Steel
• RPM: 2600
• Number of Speeds: Single Speed
• Current: 0.90 Amps

Features:

• Bearings: Equipped with sleeve bearings that can withstand a wide lubricant temperature range, from -40°F to 400°F.
• CFM (Cubic Feet per Minute): Provides an airflow rate of 120 CFM.
• Wheel Length: The blower’s wheel length is 7 inches.
• Mounting Slots: Features 16 mounting slots for various mounting options, with a slot size of 0.218″ x 0.562″ long.
• Certifications: UL Listed and CSA Certified, ensuring safety and quality standards.
• Applications: Suitable for refrigeration, food service, gas and wood-burning stoves, and fireplaces. Recommended operating temperature range is 30°F to 150°F.
• Stack Size: 7⁄8 inches.

Dimensions:

• ‘A’: 4-1/4″
• ‘B’: 3-1/2″
• ‘C’: 8-5/8″
• ‘D’: 11″
• Mounting Slots Dimensions:
  • ‘E’: 8-1/4″
  • ‘F’: 2-1/4″
  • ‘G’: 3″

The Century J507 blower is a reliable and versatile component suitable for various applications, including temperature control and air circulation. Its certifications ensure that it meets safety and quality standards, making it an excellent choice for your specific needs.
