Fasco 2836 Fan Coil / Air Conditioner Motor
| RPM (Range) | 910-1200 |
|---|---|
| mpn | Fasco 2836 |
| Electrical Type | PSC |
| Product Type | Fan Coil / Air Conditioner Motor |
| Voltage | 208-230 |
| Rotation | CCWSE |
| Material | Rolled Steel |
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
$474.51
In stock
Replacement motor specifications may differ from OEM. All replacement units are based on manufacture cross reference. Please give us a call if you have any questions you can also refer to our FAQ page located here (Frequently Asked Questions)
Local Pickup & Courier Delivery
(Refer to the Shipping & Delivery Section under the product description for more information)
Warehouse Locations: CA, CT, GA, MI, IL, TX, MD, MO, SC, IN, WA, PA
Phone: 517-543-4080
This is a low stock item please call, email or open live chat before ordering.**Alternative Available**

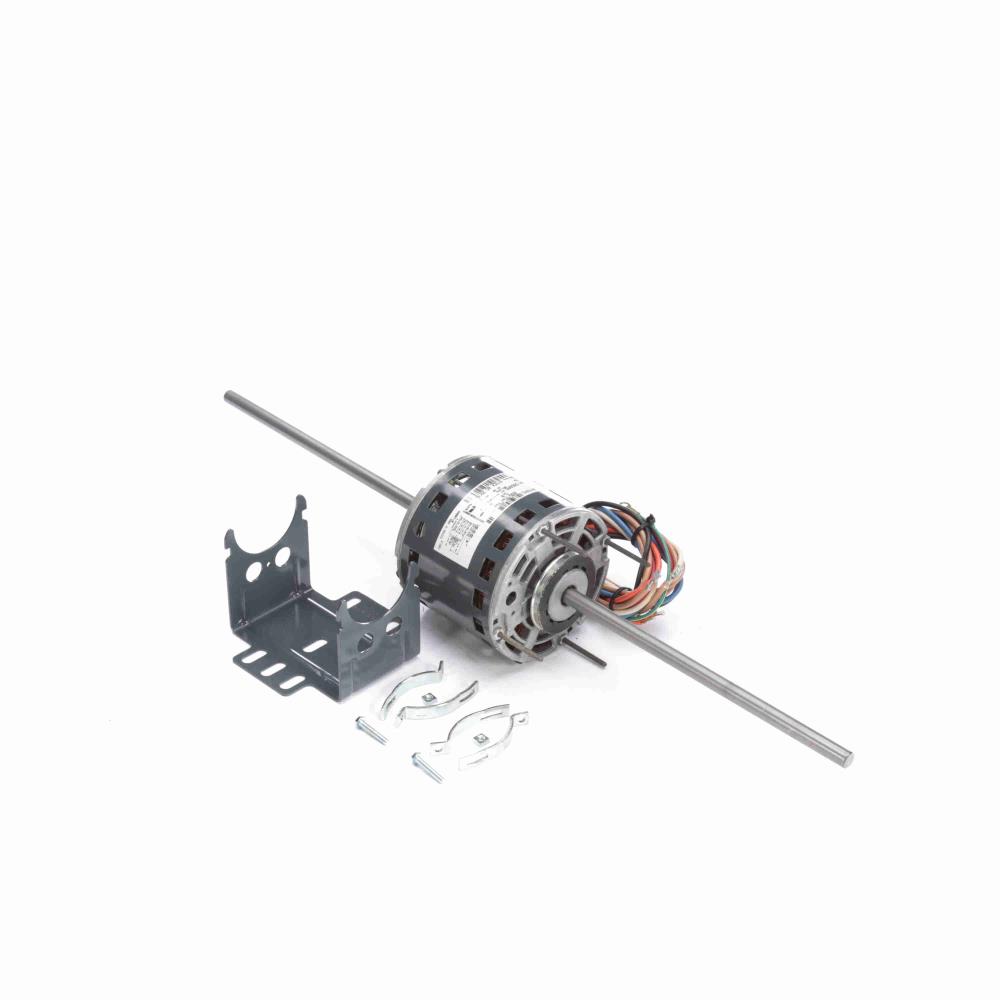

Fasco 2836 Fan Coil / Air Conditioner Motor
The Fasco 2836 is a high-performance fan coil and air conditioner motor designed for continuous air applications. This versatile motor is suitable for room air conditioners, unit coolers, and various air-moving applications, making it an ideal choice for double shaft requirements.
Specifications:
- Electrical Type: PSC
- Phase: Single
- Voltage: 208-230V
- Overload Protector: Auto
- Frame: 42
- Enclosure: OAO
- Material: Rolled Steel
- Horsepower: 1/8 HP
- Rotation: CCWSE / CWLE
- RPM: 1075
- Number of Speeds: 4
- Load Amps: 1.1
- C Dimension: 25.50″
- Bearing Type: Sleeve Bearing
Features:
- Multiple mounting capability with mounting holes
- Shell capacitor bracket designed for a 370-volt capacitor (furnished)
- Automatic thermal overload protection
This motor is engineered for reliability and efficiency, making it a perfect fit for your air conditioning and cooling needs.
| Weight | 11 lbs |
|---|---|
| Phase | Single Phase |
| RPM (Range) | 910-1200 |
| Horsepower | 1/8 |
| Enclosure | OAO |
| Frame | 42 |
| Voltage | |
| Horsepowerfilter | 1/8 |
| mpn | Fasco 2836 |
| Electrical Type | PSC |
| Product Type | Fan Coil / Air Conditioner Motor |
| Voltage | 208-230 |
| Rotation | CCWSE |
| Material | Rolled Steel |
| Speeds | Multi |
