Marathon G666 Explosion Proof Motor
| RPM (Range) | 1425-1800 |
|---|---|
| mpn | G666 |
| Electrical Type | Three Phase |
| Product Type | Explosion Proof Motor |
| Diameter | 6.5 |
| Voltage | 575 |
| Rotation | Reversible |
| Overload | Auto |
| Material | Rolled Steel |
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
$920.72
In stock
Replacement motor specifications may differ from OEM. All replacement units are based on manufacture cross reference. Please give us a call if you have any questions you can also refer to our FAQ page located here (Frequently Asked Questions)
Local Pickup & Courier Delivery
(Refer to the Shipping & Delivery Section under the product description for more information)
Warehouse Locations: CA, CT, GA, MI, IL, TX, MD, MO, SC, IN, WA, PA
Phone: 517-543-4080
This is a low stock item please call, email or open live chat before ordering.**Alternative Available**

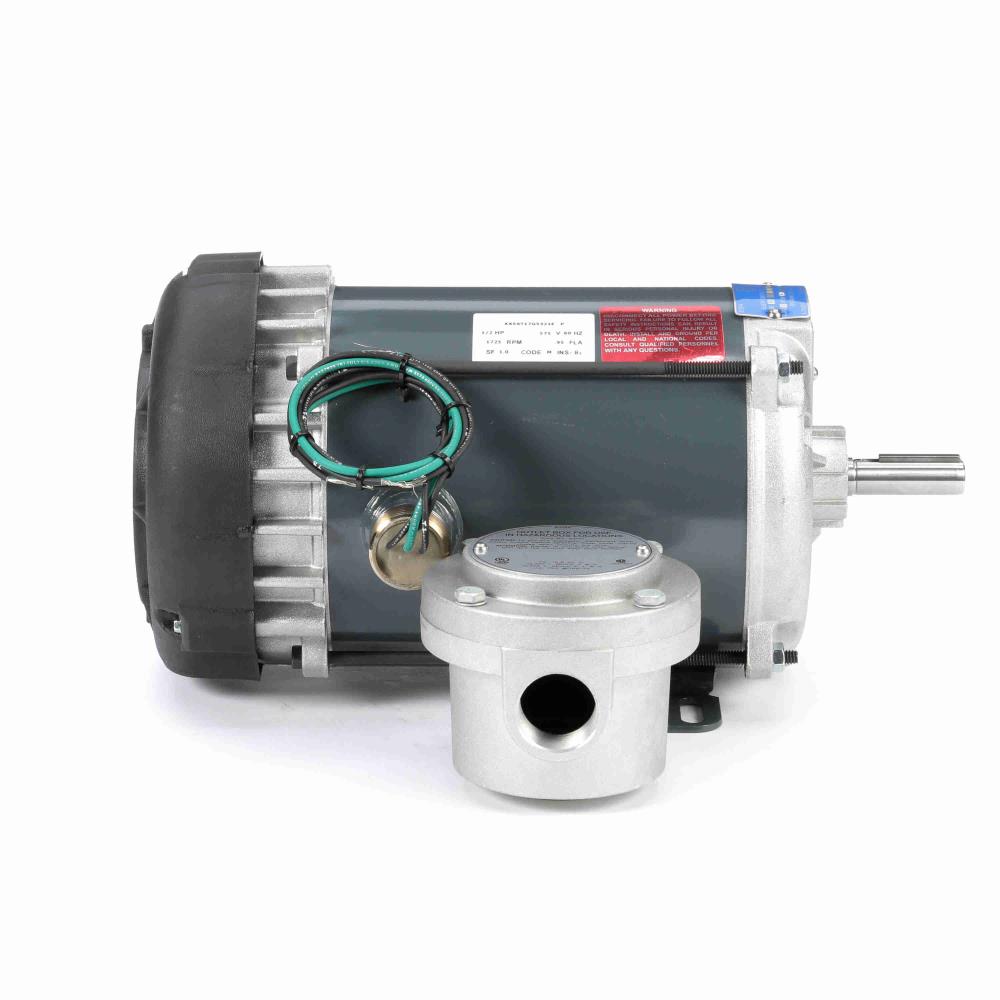

Marathon G666 Explosion Proof Motor
The Marathon G666 Explosion Proof Motor is designed for use in hazardous environments, providing reliable performance and safety. This motor is ideal for applications such as fans, blowers, pumps, compressors, and machine tools.
Specifications:
- Electrical Type: Phase
- Voltage: 575V
- Overload Protector: Automatic
- Frame: 56
- Enclosure: EPFC (Explosion Proof Fan Cooled)
- Material: Rolled Steel
- Horsepower: 1/2 HP
- Rotation: Reversible
- RPM: 1725
- Number of Speeds: 1
- Service Factor: 1.0
- Thermal Protector: Automatic Reset (VFD)
- Temperature Code: T3B
- Conduit Box: Explosion Proof (included, shipped loose)
- Bearings: Ball Bearings
- UL Listed: File E12044
- CAS Certified: File LR47504
- Keyed Shaft: 5/8″ diameter x 1 7/8″
- Insulation Class: Class B
Notes:
This motor meets the National Electrical Code and local regulations for proper selection in hazardous locations. It comes with a 1-year manufacturer warranty.
| Weight | 28 lbs |
|---|---|
| Phase | Three Phase |
| RPM (Range) | 1425-1800 |
| Horsepower | 1/2 |
| Enclosure | EPFC |
| Frame | 56 |
| Voltage | |
| Horsepowerfilter | 1/2 |
| mpn | G666 |
| Electrical Type | Three Phase |
| Product Type | Explosion Proof Motor |
| Diameter | 6.5 |
| Voltage | 575 |
| Rotation | Reversible |
| Speeds | 1 |
| Overload | Auto |
| Material | Rolled Steel |
