US-Nidec S10P1ACR General Purpose Motor
| RPM (Range) | 2500-3700 |
|---|---|
| Brand | US-Nidec |
| Rotation | REV |
| mpn | S10P1ACR |
| Electrical Type | Three Phase |
| Product Type | General Purpose Motor |
| Voltage | 208-230/460 |
| Rotation | Reversible |
| Overload | No |
| Material | Rolled Steel |
| Bearings | Ball / Ball |
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
$1,241.44
In stock
Replacement motor specifications may differ from OEM. All replacement units are based on manufacture cross reference. Please give us a call if you have any questions you can also refer to our FAQ page located here (Frequently Asked Questions)
Local Pickup & Courier Delivery
(Refer to the Shipping & Delivery Section under the product description for more information)
Warehouse Locations: CA, CT, GA, MI, IL, TX, MD, MO, SC, IN, WA, PA
Phone: 517-543-4080
This is a low stock item please call, email or open live chat before ordering.**Alternative Available**

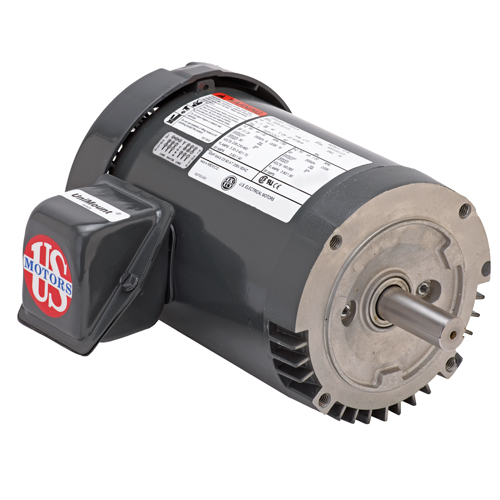

US-Nidec S10P1ACR General Purpose Motor
The US-Nidec S10P1ACR is a robust general-purpose motor designed for various applications requiring a reliable phase electric motor. This motor features a totally enclosed fan-cooled (TEFC) design, ensuring durability and efficiency in operation.
Specifications:
- Power: 10 hp
- Speed: 3600 rpm
- Amperage: 26.5-23.5/11.7 amps
- Voltage: 208-230/460 volts
- Frequency: 60 Hz
- Phase: 3-phase
- Frame Size: NEMA 213TC
- Shaft Diameter: 1 3/8″ diameter x 3 1/8″
- Service Factor: 1.15
- Overload Protection: None
- Mounting: Rigid base mount
- Bearing Type: Ball bearings
- Insulation Class: Class F
- Reversible: Yes
Warranty: 1 year manufacturer warranty
This motor is ideal for general-purpose applications that require a reliable and efficient electric motor. The wiring diagram is conveniently located on the motor plate for easy reference.
| Weight | 120 lbs |
|---|---|
| Phase | Three Phase |
| RPM (Range) | 2500-3700 |
| Horsepower | 10 |
| Enclosure | TEFC |
| Frame | 215TC |
| Voltage | |
| Brand | US-Nidec |
| Rotation | REV |
| Horsepowerfilter | 10 |
| mpn | S10P1ACR |
| Electrical Type | Three Phase |
| Product Type | General Purpose Motor |
| Voltage | 208-230/460 |
| Rotation | Reversible |
| Overload | No |
| Speeds | 1 |
| Material | Rolled Steel |
| Bearings | Ball / Ball |
