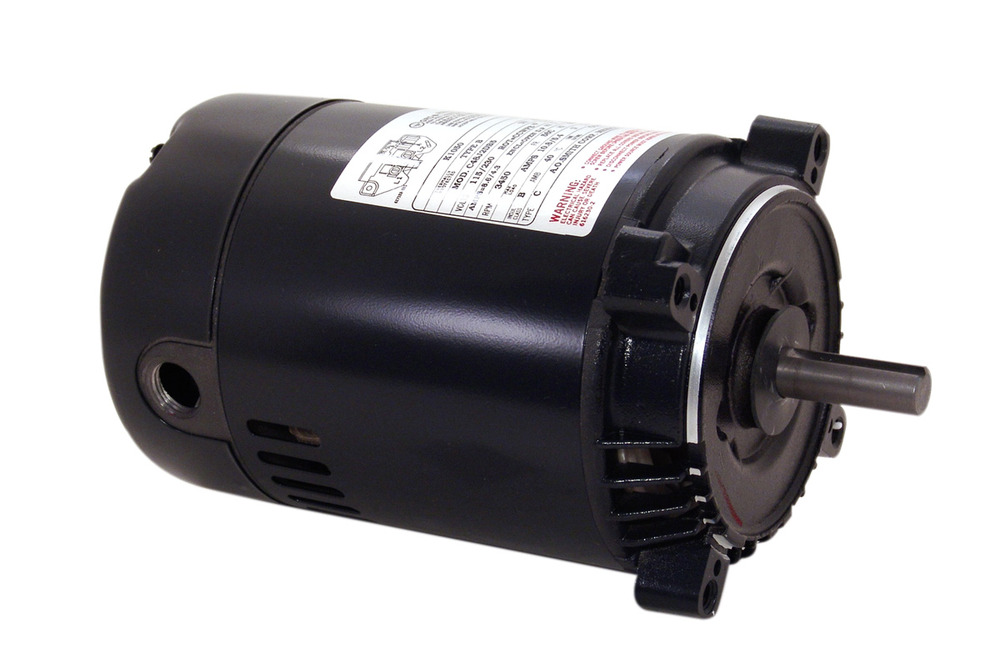

S48H2DB5C4 Replacement Motor - Image 1

S48H2DB5C4 Replacement Motor

RotationReversible
Shaft_Diameter0.625
Shaft_Length2.06
Shaft_TypeSingle
Speeds1
Voltage230/115
Horsepower1/3 HP
Motor_Diameter6.5
Frame_Length5
Amps4.3/8.6
mpnS48H2DB5C4
PhaseSingle Phase
Product_TypeJet Pump Motor
Frame56C
EnclosureODP
Electrical TypeCapacitor Start Induction Run

Same day shipping if ordered before 3PM EST Monday-Friday (Local Pickup Available)

Warehouse Locations
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Request Quote
Confirm Availability
Rush Delivery / Pickup

$227.80

SKU: XA-359269

Replacement motor specifications may differ from OEM. All replacement units are based on manufacture cross reference. Please give us a call if you have any questions you can also refer to our FAQ page located here  (Frequently Asked Questions)

Local Pickup & Courier Delivery

Local Pickup and Courier Delivery Available for Most Products
(Refer to the Shipping & Delivery Section under the product description for more information)
Warehouse Locations: CA, CT, GA, MI, IL, TX, MD, MO, SC, IN, WA, PA
Phone: 517-543-4080
Additional information
Weight15 lbs
Warehouse Locations
RotationReversible
Shaft_Diameter0.625
Shaft_Length2.06
Shaft_TypeSingle
Speeds1
Voltage230/115
Horsepower1/3 HP
Motor_Diameter6.5
Frame_Length5
Amps4.3/8.6
mpnS48H2DB5C4
PhaseSingle Phase
Product_TypeJet Pump Motor
Frame56C
EnclosureODP
Electrical TypeCapacitor Start Induction Run
