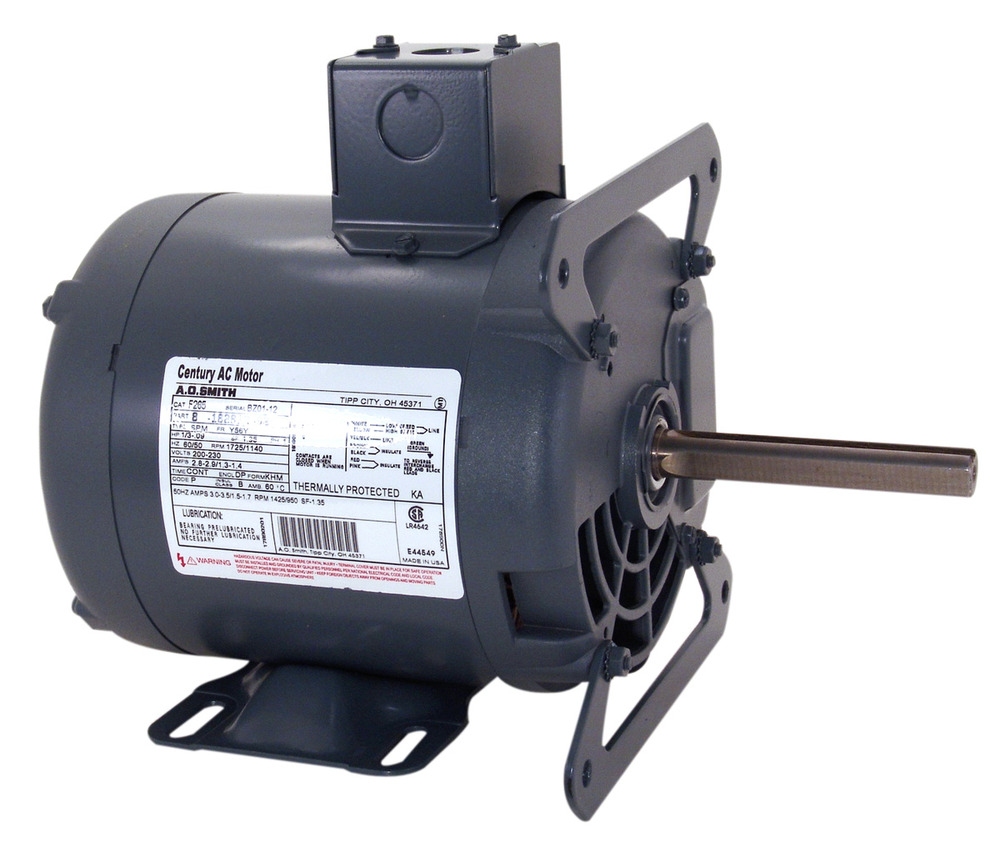

S56AA97E35
| Speeds | 2 |
|---|---|
| Rotation | Reversible |
| Shaft_Diameter | 0.625 |
| Shaft_Length | 4.875 |
| Shaft_Type | Single |
| Voltage | 200/230 |
| Horsepower | 1/3 HP |
| Motor_Diameter | 6.5 |
| Frame_Length | 4.75 |
| Amps | 2.8-2.9/1.3-1.4 |
| mpn | S56AA97E35 |
| Phase | Single Phase |
| Product_Type | Convection and Pizza Oven Motor |
| Frame | 56Y |
| Enclosure | ODP |
| Electrical Type | Split Phase, Induction Run, Multi-Speed |
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
$743.32
In stock
Replacement motor specifications may differ from OEM. All replacement units are based on manufacture cross reference. Please give us a call if you have any questions you can also refer to our FAQ page located here (Frequently Asked Questions)
Local Pickup & Courier Delivery
Local Pickup and Courier Delivery Available for Most Products
(Refer to the Shipping & Delivery Section under the product description for more information)
Warehouse Locations: CA, CT, GA, MI, IL, TX, MD, MO, SC, IN, WA, PA
Phone: 517-543-4080
(Refer to the Shipping & Delivery Section under the product description for more information)
Warehouse Locations: CA, CT, GA, MI, IL, TX, MD, MO, SC, IN, WA, PA
Phone: 517-543-4080
Description
Product Description
The S56AA97E35 is a high-performance electrical motor designed for various applications. This split-phase, induction run motor operates at multiple speeds and is ideal for tasks requiring reliable and efficient performance.
Specifications
- Electrical Type: Split Phase, Induction Run, Multi-Speed
- Horsepower: 1/3 – 0.09 HP
- RPM: 1725
- Frame: Y56Y
- Diameter: 6.5″
- Enclosure: Drip Proof
- Phase: 1
- Voltage: 200-230V
- Rotation: Reversible Counterclockwise
- Overload Protection: Thermally Protected
- Material: Rolled Steel
- Mounting: Rigid Base
- Amperage: 2.8-2.9/1.3-1.4A
- Shaft Type: Keyed
- KW: 0.25
- Shaft Diameter: 0.625″
- Bearings DE Type: Ball
- Bearings ODE Type: Ball
- Shaft Extension: 4.000″
Notes
- Features double sealed ball bearings for enhanced durability.
- Includes an automatic reset overload protector for added safety.
- Proofing switch is included for operational convenience.
Additional information
| Weight | 24.0 lbs |
|---|---|
| Speeds | 2 |
| Warehouse Locations | CA, GA, IN, MI, MO, NY, TX |
| Rotation | Reversible |
| Shaft_Diameter | 0.625 |
| Shaft_Length | 4.875 |
| Shaft_Type | Single |
| Voltage | 200/230 |
| Horsepower | 1/3 HP |
| Motor_Diameter | 6.5 |
| Frame_Length | 4.75 |
| Amps | 2.8-2.9/1.3-1.4 |
| mpn | S56AA97E35 |
| Phase | Single Phase |
| Product_Type | Convection and Pizza Oven Motor |
| Frame | 56Y |
| Enclosure | ODP |
| Electrical Type | Split Phase, Induction Run, Multi-Speed |
The highlighted circles on this map indicate locations where same day delivery is available via courier
Same Day Delivery Map
Same day delivery orders must be placed before 3pm EST, orders placed after this time will ship the following business day.
