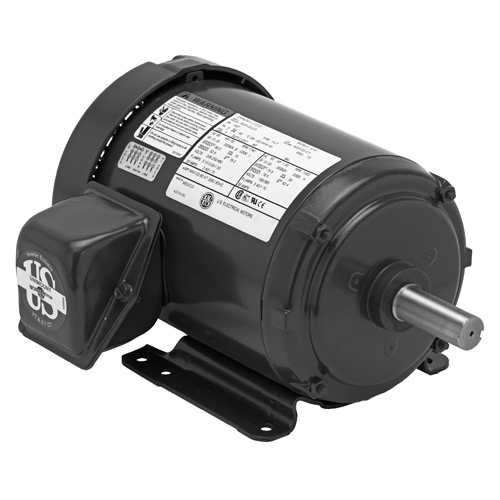

US-Nidec S7P2A General Purpose Motor
| Voltage | 208/230/460 |
|---|---|
| Speeds | 1 |
| Brand | US-Nidec |
| Rotation | Reversible |
| Shaft_Diameter | 1.375 |
| Shaft_Length | 3.5 |
| Shaft_Type | Single |
| Horsepower | 7.5 HP |
| Amps | 20-18.1/9.1 |
| mpn | S7P2A |
| Phase | Three Phase |
| Product_Type | General Purpose Motor |
| Frame | 213T |
| Enclosure | TEFC |
| Overload | No |
| Material | Rolled Steel |
| Bearings | Ball / Ball |
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
$1,058.31
In stock
Replacement motor specifications may differ from OEM. All replacement units are based on manufacture cross reference. Please give us a call if you have any questions you can also refer to our FAQ page located here (Frequently Asked Questions)
Local Pickup & Courier Delivery
(Refer to the Shipping & Delivery Section under the product description for more information)
Warehouse Locations: CA, CT, GA, MI, IL, TX, MD, MO, SC, IN, WA, PA
Phone: 517-543-4080
US-Nidec S7P2A General Purpose Motor
The US-Nidec S7P2A General Purpose Motor is a robust and efficient motor designed for a variety of applications. With a power output of 7 1/2 hp and a speed of 1800 rpm, this motor is ideal for general purpose use. It operates at a current rating of 20.0-18.1/9.1 amps at 208-230/460 volts and 50/60 Hz.
Specifications:
- Power: 7 1/2 hp
- Speed: 1800 rpm
- Current Rating: 20.0-18.1/9.1 amps
- Voltage: 208-230/460 volts
- Frequency: 50/60 Hz
- NEMA Frame: 213 T
- Shaft Diameter: 1 3/8″
- Shaft Length: 3 1/2″
- Service Factor: 1.15
- Design: Totally Enclosed Fan Cooled (TEFC)
- Mounting: Rigid base mount
- Bearing Type: Ball bearings
- Insulation Class: Class F
- Reversible: Yes
This motor does not include overload protection and is specifically designed for use in single-phase electric motor systems. It is backed by a 1-year manufacturer warranty for your peace of mind.
| Weight | 90 lbs |
|---|---|
| Voltage | 208/230/460 |
| Speeds | 1 |
| Brand | US-Nidec |
| Warehouse Locations | CA, MI, SC, TX |
| Rotation | Reversible |
| Shaft_Diameter | 1.375 |
| Shaft_Length | 3.5 |
| Shaft_Type | Single |
| Horsepower | 7.5 HP |
| Amps | 20-18.1/9.1 |
| mpn | S7P2A |
| Phase | Three Phase |
| Product_Type | General Purpose Motor |
| Frame | 213T |
| Enclosure | TEFC |
| Overload | No |
| Material | Rolled Steel |
| Bearings | Ball / Ball |
